รายละเอียดสินค้า
Place of Origin: China
ชื่อแบรนด์: 1stess
ได้รับการรับรอง: LVD

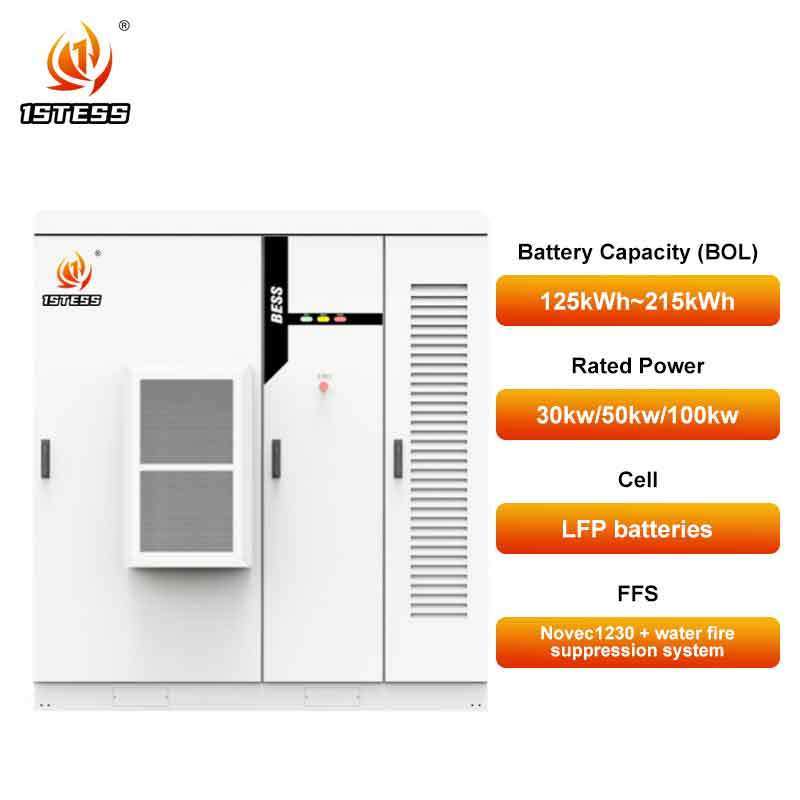

Model Number: EnerArk2.0-M
เอกสาร: Specification EnerArk 2.0 -...ld.pdf
เงื่อนไขการชําระเงินและการจัดส่ง
Minimum Order Quantity: 1 piece
ราคา: negotiable
Packaging Details: container
Delivery Time: 45-60 days
Supply Ability: 10 containers per month
Operating Temperature: |
-20°C To 50°C |
Certifications: |
IEC,UN,UL |
Battery Type: |
LiFePO4 |
IP protection: |
IP55 |
Installation: |
Indoor Or Outdoor |
Application: |
Industrial And Commerical |
Warranty: |
5 Years |
Capacity: |
107.52KWH-125.44KWH |
Operating Temperature: |
-20°C To 50°C |
Certifications: |
IEC,UN,UL |
Battery Type: |
LiFePO4 |
IP protection: |
IP55 |
Installation: |
Indoor Or Outdoor |
Application: |
Industrial And Commerical |
Warranty: |
5 Years |
Capacity: |
107.52KWH-125.44KWH |
| Attribute | Value |
|---|---|
| Operating Temperature | -20°C To 50°C |
| Certifications | IEC, UN, UL |
| Battery Type | LiFePO4 |
| IP protection | IP55 |
| Installation | Indoor Or Outdoor |
| Application | Industrial And Commercial |
| Warranty | 5 Years |
| Capacity | 107.52KWH-125.44KWH |
| Model Comparison | ||
| Model | EnerArk2.0-NBN-P50 | EnerArk2.0-NBN-P100 |
| DC Side Parameters | ||
| Cell type | LFP-280Ah | |
| Module model | IP20S | |
| Battery capacity range | 143.36kWh~215kWh | 215kWh |
| AC On-Grid Side Parameters | ||
| Grid connection type | 3P4W | |
| Charging/discharging power | 50kW | 100kW |
| Rated grid voltage | AC 400V±15% | |
| Frequency range | 45Hz~55Hz | |
| Rated AC output current | 72A | 144A |
| Power factor | 0.8(Leading)~0.8(Lagging) | |
| Harmonics | ≤3%(at rated power) | |
| AC off-grid side parameters | ||
| Load type | 3P4W | |
| Rated output power | 50kW | 100kW |
| Rated output voltage | AC400V±1% | |
| Rated output frequency | 50Hz | |
| Rated current | 72A | 144A |
| Frequency accuracy | 0.2Hz | |
| General Parameters | ||
| Dimensions (W*H*D) | 1900mm*2100mm*1330mm | |
| Packing size(W*H*D) | 2100mm*2244mm*1500mm | |
| Maximum weight | 2500kg | |
| Degree of protection | IP55(Battery Cabinet)IP34(Electrical Cabinet) | |
| Cooling method type | Battery Cabinet (air conditioner)&Electrical Cabinet (forced air cooling) | |
| Fire fighting system | FM200 automatic fire extinguishing | |
| Anti-corrosion grade | C3 | |
| Relative humidity | 0-95%(non-condensing) | |
| Operating temperature* | -20℃~50℃ | |
| Altitude** | <2000m | |
| Noise level | ≤75dB | |
| Communication interface | RS485,Ethernet | |
| Communication protocol | Modbus RTU,Modbus TCP/IP | |
| Product standard warranty | 5 years,6000 cycles(0.5C,95%DOD,EOL:70%) | |
| PV Side Parameters (Optional) | ||
| Maximum PV input power | 30kW/60kW/90kW/120kW | |
| MPPT voltage range | 200V-850V | |
| Number of MPPTs | 1/1/2/2 | |
| Number of PV inputs | 1/1/2/2 | |
| Maximum input current | 100A/200A/300A/400A | |
| Certifications | CE(IEC61000,IEC62619,IEC62477),UN3480,UN38.3,MSDS Converter:UK G99,VDE4105,EN50549 Cell:IEC62619,UL1973,UL1642,UL9540A | |
